Ground-Source vs. Air-Source Heat Pumps: The Real Differences

So you've decided you want a heat pump. Smart move. But now you're staring at two very different animals: ground-source (geothermal) and air-source. Both move heat instead of creating it. Both can heat and cool your home. Both use electricity.

But that's roughly where the similarities end.

The internet is full of articles that compare these two systems. Most of them either sell you on geothermal like it's the second coming or dismiss it as too expensive without doing the math. Here's what we're going to do instead: lay out the actual data from the DOE, ENERGY STAR, the IRS, and real-world market pricing, and let you figure out which one fits your situation.

Because the answer isn't "one is always better." It depends on your climate, your budget, your property, and how long you plan to stay in your house.

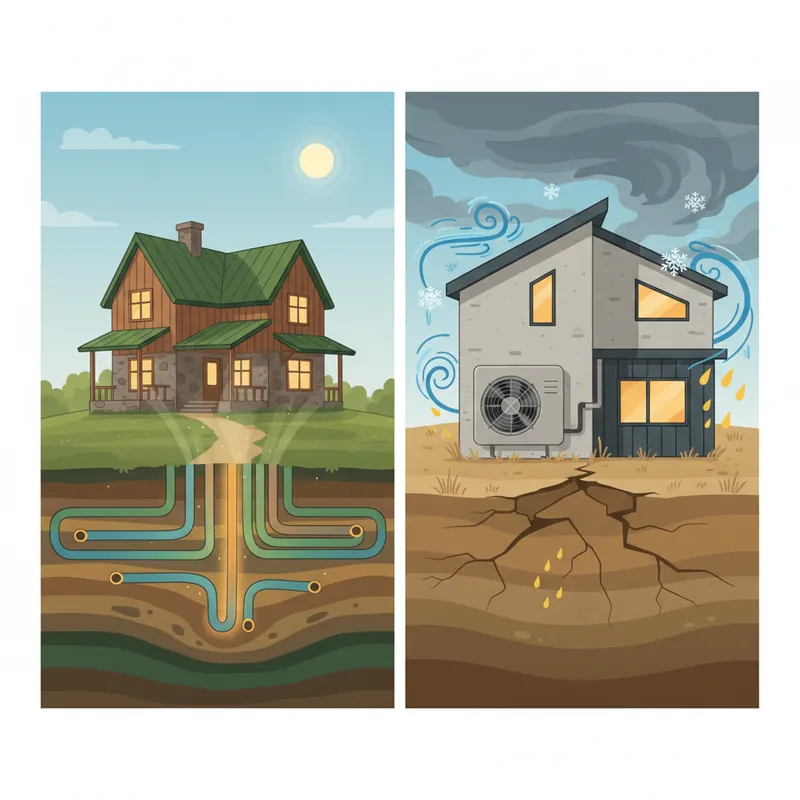

Same Idea, Different Heat Source

Both systems work on the same basic principle: they move heat from one place to another using a refrigeration cycle. Your refrigerator does the same thing — pulls heat from inside and dumps it out the back. Heat pumps just scale that up to an entire building.

The critical difference is where they get their heat.

An air-source heat pump (ASHP) uses the outdoor air. It has an outdoor unit with a fan and coil that extracts heat from the air in winter and rejects heat into the air in summer. The DOE describes it as a system with a compressor and two coils, with a reversing valve to switch between heating and cooling modes.

A ground-source heat pump (GSHP) uses the earth itself. Pipes buried underground (called a ground loop) circulate fluid that exchanges heat with the soil or groundwater. The DOE's Geothermal Technologies Office notes that ground temperatures at about 30 feet below the surface stay between roughly 50°F and 59°F year-round — regardless of what's happening with the weather above.

That temperature stability is the whole game. When it's -10°F outside and your air-source system is trying to squeeze heat out of brutally cold air, the ground-source system is pulling heat from 55°F soil. Not even close to the same challenge.

Efficiency: Where the Numbers Actually Land

Efficiency is where ground-source systems pull ahead — and it's not a small gap.

Ground-Source Efficiency

ENERGY STAR's minimum certification thresholds for geothermal systems start at a COP of 3.1 to 4.1, depending on system type. That means even the baseline qualifying units deliver 3.1 to 4.1 units of heat for every unit of electricity consumed.

But manufacturers have pushed well beyond those minimums. WaterFurnace, one of the leading geothermal manufacturers, lists current residential products hitting up to 5.2 COP and 47.0 EER. Their mid-range 5 Series still manages 5.0 COP. Those are real numbers on real spec sheets, not lab fantasies.

Air-Source Efficiency

ENERGY STAR's minimum criteria for air-source heat pumps require 7.8 HSPF2 and 15.2 SEER2 for split systems. For cold-climate designation, units must hit at least 8.1 HSPF2 — and critically, they must demonstrate a COP of at least 1.75 at 5°F with at least 70% capacity retention.

That's solid for air-source. Modern cold-climate ASHPs are genuinely impressive machines — way better than what was available even five years ago. The DOE says properly installed air-source systems can deliver 2 to 4 times more heat energy than the electrical energy they consume.

But here's the rub. That "2 to 4 times" number covers a wide range of conditions. At 47°F (a common rating point), air-source systems look great. At 5°F, even ENERGY STAR cold-climate units only need to prove a COP of 1.75. Compare that to geothermal systems that can still be pulling 3.5+ COP in the same weather because their heat source hasn't budged from 55°F.

Cost: The Elephant in the Room

Let's not pretend this isn't the question that matters most to most homeowners. It is. And the numbers are stark.

Air-Source: What You'll Actually Pay

For a typical 2,000–2,500 square foot home, current market data puts a whole-home ducted air-source system at roughly $9,000 to $20,000 installed. That range depends on equipment tier (standard vs. variable-speed cold-climate), whether your existing ductwork is serviceable, and your local labor market.

A mid-range 3-ton central ASHP for a 1,500–2,000 sq ft home — the most common residential replacement scenario — typically lands around $9,000 to $13,000 installed according to current PickHVAC market pricing. Premium variable-speed cold-climate units push higher.

Ground-Source: The Price of Going Underground

Here's where it gets painful. The DOE says geothermal installation costs "several times" that of an air-source system of the same capacity. Current market data backs that up.

Dandelion Energy puts typical installed costs at $30,000 to $50,000 including drilling and installation. For a 2,000–2,500 sq ft home, $25,000 to $50,000+ installed is a realistic range — with vertical drilling projects in challenging geology pushing toward the higher end.

That's 2x to 4x+ the cost of an air-source system. No way around it.

But Wait — The Long Game

The upfront cost gap is real, and it's big. But it's not the whole story.

If you're saving $1,500 to $2,500 per year on energy costs with geothermal (a common range cited by industry sources), and the ground loop lasts 50+ years, the total cost of ownership over 20-30 years can actually favor geothermal — especially when you factor in the stronger tax credit and the fact that you'll replace a traditional HVAC system 2-3 times while the geothermal ground loop keeps chugging along.

That said, "total cost of ownership" doesn't help when you need to write a check today. This is a real barrier, and no amount of math gymnastics changes that.

How They Handle Extreme Weather

This is arguably the most important performance consideration — and the one that should drive your decision more than anything else.

Extreme Cold (Below 0°F)

Modern cold-climate air-source heat pumps are genuinely impressive. ENERGY STAR now requires cold-climate models to be tested down to 5°F, and they must maintain at least 70% of their rated heating capacity at that temperature. The DOE notes that recent technology advances have made ASHPs viable even in regions with "extended periods of subfreezing temperatures."

But viable doesn't mean optimal. At 5°F, even a certified cold-climate ASHP is working hard — minimum COP 1.75 means it's delivering less than twice the heat energy it's consuming. Below 5°F, the system keeps running, but ENERGY STAR explicitly notes that "a backup energy source may be the most efficient way to cover very low-temperature hours." Translation: you might still need strip heat or a gas backup for the really nasty days.

Ground-source systems? They just... keep going. The DOE is pretty clear: geothermal heat pumps do not rely on the temperature of the outside air and are effective "in all climates." When it's -15°F above ground, the ground loop is still exchanging heat with 50°F soil. The compressor has a much easier job, efficiency stays high, and there's no need for backup heat in most installations.

Extreme Heat (95°F+)

This one gets less attention but matters just as much if you're in Phoenix or Houston.

An air-source system in cooling mode has to dump heat into air that's already 100°F+. That's like trying to dry off with a wet towel. Cooling efficiency drops noticeably as outdoor temperatures climb.

A ground-source system dumps that heat into the ground, which is sitting at maybe 60-65°F even in the hottest climates. Much easier thermodynamic job, more stable cooling performance, and the system doesn't have to work nearly as hard.

Moderate Climates

In mild climates — think coastal California, parts of the Pacific Northwest, the Carolinas — both systems perform well. Air-source systems are near peak efficiency when outdoor temps are moderate, and the operating cost difference between the two shrinks considerably.

This is actually where the air-source value proposition is strongest. If your winters rarely dip below 25°F and your summers rarely exceed 95°F, the ASHP gives you solid performance at a fraction of the geothermal price tag. The payback period for geothermal stretches out because the annual energy savings are smaller.

Lifespan and Maintenance

This is where geothermal builds its long-term economic case.

Ground-Source Lifespan

The DOE estimates indoor geothermal components last up to 24 years. Dandelion Energy puts it at 20-25 years. The ground loop — the expensive part — lasts 50+ years. IGSHPA notes that loop piping can carry up to a 50-year warranty and the ground heat exchanger is effectively maintenance-free.

When the indoor heat pump reaches end of life, you replace the indoor unit. The ground loop, which accounts for a huge portion of the original cost, stays in the ground doing its thing for another 25+ years. Your second heat pump costs dramatically less to install than the first.

Air-Source Lifespan

Industry sources typically put residential air-source heat pump life at around 10-15 years for the outdoor unit. Because the outdoor components sit in the weather year-round — rain, snow, ice, hail, salt air, UV exposure — they face more mechanical wear and corrosion than indoor geothermal equipment.

Maintenance Comparison

The DOE says geothermal systems need little maintenance compared to air-source. Makes sense — there's no outdoor unit sitting in the weather. Geothermal maintenance is mostly indoor: filter changes, occasional circulator pump checks, loop pressure verification.

Air-source maintenance includes all the usual HVAC stuff (filters, duct inspection, refrigerant checks) plus outdoor unit care: keeping the coil clean, clearing snow and debris, dealing with defrost cycles in winter, and managing the wear that comes from constant weather exposure.

Neither system is maintenance-free, but the geothermal system has fewer exposed moving parts and no outdoor unit to baby.

Federal Tax Credits: Not Even Close

If you're considering either system, the tax credit situation could tip the scales — and it's not a subtle difference.

Ground-Source: Section 25D (The Good One)

Geothermal heat pumps qualify under Section 25D — the Residential Clean Energy Credit. This is the same category as solar panels. Key details:

• 30% of qualified costs — equipment, site prep, installation, piping, wiring
• No annual dollar cap listed on the IRS page for geothermal
• Covers principal residences and second homes (not rental properties)
• Must meet ENERGY STAR requirements at time of purchase

On a $35,000 geothermal installation, that's a $10,500 tax credit. Not a deduction — a dollar-for-dollar reduction in what you owe the IRS.

Air-Source: Section 25C (The Smaller One)

Air-source heat pumps generally fall under Section 25C — the Energy Efficient Home Improvement Credit. Different animal:

• 30% of qualified expenses — same percentage
• Capped at $2,000 per year for qualifying heat pumps
• Must meet the CEE highest efficiency tier
• Starting January 2025, ASHPs must be on ENERGY STAR's eligible list and recognized as ENERGY STAR Most Efficient

So on a $15,000 air-source installation, 30% would be $4,500 — but you can only claim $2,000. That $2,000 cap is a real limitation.

Net Cost After Federal Credits

This is where the math gets interesting:

• Air-source: $15,000 installed – $2,000 credit = $13,000 net
• Ground-source: $35,000 installed – $10,500 credit = $24,500 net

The gap goes from $20,000 down to $11,500. Still significant, but the 25D credit chews through a big chunk of geothermal's price disadvantage. Stack state incentives and utility rebates on top (available in many states — check our state guides), and the real out-of-pocket difference can shrink further.

Which One Should You Actually Pick?

We're not going to tell you one is always better. Because it's not. Here's the honest framework:

An air-source heat pump is probably your best bet if:

• Your budget is the primary constraint and you need to keep installed cost under ~$20K
• You already have serviceable ductwork (or want ductless mini-splits)
• You're in a moderate climate where extreme cold and extreme heat are rare
• You want a faster, simpler installation — days, not weeks
• You might sell the home before a geothermal payback period would complete (5-10+ years)
• Your lot has serious constraints — tiny yard, no drilling access, solid rock at shallow depth

A ground-source heat pump is probably worth the investment if:

• You plan to stay in the home long-term (10+ years)
• You have a property that can accommodate drilling or trenching
• Your climate has serious heating loads, serious cooling loads, or both
• You want the best possible efficiency and the most stable year-round performance
• You value quiet operation and long equipment life
• You can take full advantage of the 30% Section 25D credit and available state incentives
• You're building a new home (easiest and most cost-effective time to install geothermal)

The Questions That Actually Matter

Forget the technology debates. Ask yourself these five questions:

1. What does my site physically allow? If you can't drill and don't have yard space, geothermal may not be an option regardless of budget.
2. What's my real budget? Not aspirational — actual. Factor in available credits and financing.
3. How extreme is my climate? The harsher your winters and hotter your summers, the more geothermal's stable performance pays off.
4. How long will I own this house? Geothermal is a long-term investment. If you're moving in 5 years, air-source almost certainly makes more financial sense.
5. What incentives are actually available right now? Not what a blog post from 2023 says — what the IRS, your state, and your utility company are offering today.

There's no universally right answer. There's a right answer for your house, your climate, and your budget. Start with the fundamentals above and go from there.

If you want to dig deeper into how geothermal systems actually work, start with our complete guide to how geothermal heat pumps work. And if you're wondering how either option stacks up against your existing furnace and AC, check our geothermal vs. traditional HVAC comparison.
