Open Loop vs. Closed Loop Geothermal: Which System Is Right for You?

You've decided you're interested in geothermal. You've read about how the technology works. Maybe you've even run the cost numbers. But now you're hitting one of the biggest decisions in the process: which type of ground loop should you install?

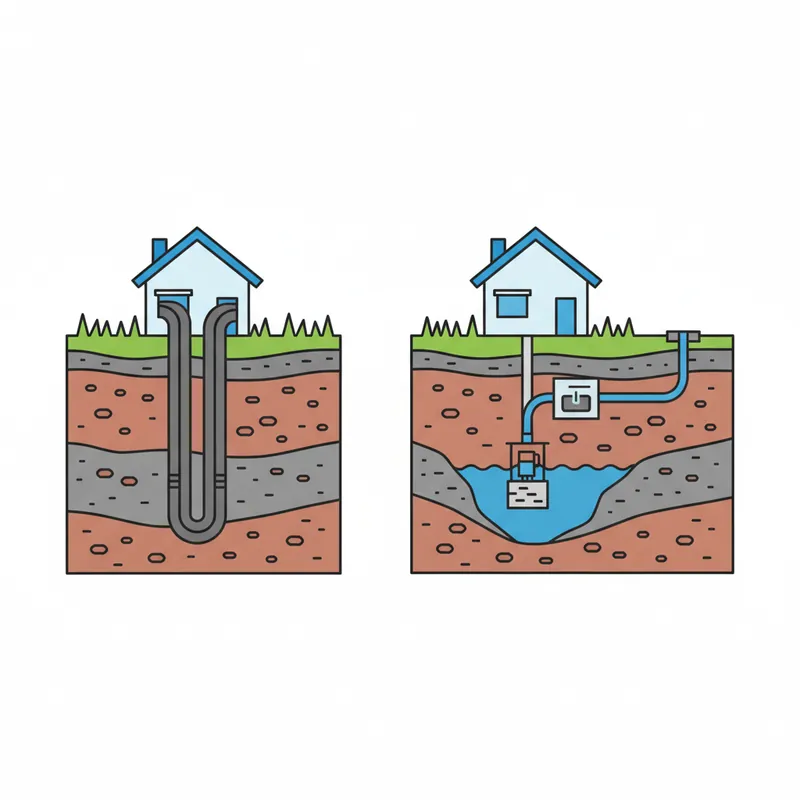

The two main categories are closed loop and open loop. They both accomplish the same thing — exchanging heat with the earth — but they do it in fundamentally different ways, and the choice affects your costs, performance, maintenance requirements, and even whether your local government will let you install it at all.

The Quick Answer

If you want the bottom line before the deep dive:

• Closed loop is the default choice for most residential installations. It's simpler to permit, requires less maintenance, works everywhere, and the ground loop lasts 50+ years. About 85-90% of residential geothermal installations use closed loop systems.
• Open loop can be more efficient and cheaper to install if you have a good water source, but it comes with regulatory hurdles, water quality concerns, and higher maintenance. It's the better choice in specific situations, not the universal recommendation.

Now let's get into why.

Closed Loop Systems Explained

In a closed loop system, a mixture of water and antifreeze (typically food-grade propylene glycol) circulates through a continuous loop of high-density polyethylene (HDPE) pipe buried in the ground. The fluid never leaves the pipe — it just cycles through, absorbing heat from the earth in winter and depositing heat back in summer.

According to the DOE, there are three main configurations:

Horizontal Closed Loop

Pipes are buried in trenches 4-6 feet deep, running horizontally across your yard. The DOE notes that typical installations use two pipes — one at six feet and one at four feet — or two pipes side by side at five feet in a two-foot wide trench.

• Best for: Homes with enough yard space, new construction (easier to trench before landscaping)
• Typical cost: $15,000-$30,000 for the loop field
• Land needed: Roughly 400-600 linear feet of trench per ton of capacity (a 3-ton home system might need 1,200-1,800 feet of trench)
• Pros: Cheapest closed loop option, easier to install, no drilling required
• Cons: Needs significant yard space, can be affected by shallow soil conditions, may require more total pipe than vertical

Vertical Closed Loop

Boreholes are drilled 100-400 feet deep, typically 20 feet apart. Two pipes connected by a U-bend at the bottom are inserted into each borehole and grouted in place. The DOE specifies holes approximately four inches in diameter.

• Best for: Limited yard space, rocky soil near the surface, commercial buildings
• Typical cost: $20,000-$50,000+ for the loop field (drilling is expensive)
• Land needed: Much less than horizontal — the boreholes take up very little surface area
• Pros: Works on small lots, reaches stable deep-earth temperatures, less pipe required
• Cons: Significantly more expensive due to drilling, requires specialized drilling equipment

Pond/Lake Closed Loop

If you have a body of water on or near your property, the loop pipe can be coiled and submerged rather than buried. The DOE notes that in cold climates, the coils should be placed at least eight feet below the surface to prevent freezing.

• Best for: Properties with a suitable pond, lake, or reservoir
• Typical cost: $10,000-$20,000 (no drilling or major trenching needed)
• Requirements: The water body must meet minimum volume, depth, and quality requirements
• Pros: Cheapest installation option, very efficient heat exchange with water
• Cons: Requires a suitable water body, may need permits, less common

Open Loop Systems Explained

Open loop systems work differently. Instead of circulating a fluid through a closed pipe, they pump actual groundwater from a well, pass it through the heat pump's heat exchanger, and then discharge it back — either into a second well (called a "return well" or "injection well"), back into a surface water body, or into a drainage system.

The water isn't consumed or contaminated — its temperature just changes slightly (typically 5-10°F) before it's returned. But it is being extracted, moved, and discharged, which creates a fundamentally different relationship with your local water supply and regulatory environment.

How It Works

1. Supply well draws groundwater at a constant 50-60°F (varies by region and depth)
2. Heat pump extracts heat from the water (heating mode) or adds heat to it (cooling mode)
3. Discharge — the water is returned to the ground via injection well, or to a pond/stream/drainage system

Water Requirements

Open loop systems need a substantial, reliable water supply. A typical residential system requires 4-8 gallons per minute (GPM) of consistent flow. That translates to significant daily water movement — potentially 5,000-10,000+ gallons per day during peak heating or cooling season.

The water must also be clean enough to pass through the heat exchanger without causing scaling, corrosion, or fouling. Hard water, water high in iron or minerals, or water with sand or sediment can create serious maintenance problems.

Cost Comparison

Here's where open loop gets interesting. When conditions are right, it can actually be cheaper to install:

Open Loop Costs

• Supply well drilling: $3,000-$15,000 (depending on depth and geology)
• Return well (if required): $3,000-$15,000
• Heat pump and indoor components: $5,000-$10,000
• Plumbing and connections: $2,000-$5,000
• Total typical range: $13,000-$45,000

If you already have a well with sufficient flow and quality, you can potentially skip the biggest cost. Some homeowners with existing domestic wells can add an open loop geothermal system for significantly less than a new closed loop installation.

Closed Loop Costs (for comparison)

• Horizontal: $15,000-$50,000
• Vertical: $20,000-$80,000+
• Pond/Lake: $10,000-$20,000

The cost advantage of open loop disappears quickly if you need to drill a new supply well AND a return well in difficult geology. At that point, a horizontal closed loop is often comparable or cheaper.

Efficiency and Performance

Open loop systems are generally slightly more efficient than closed loop systems. Here's why:

In a closed loop, the heat exchange happens through the pipe wall and the surrounding soil. There's always some thermal resistance — the pipe, the grout, the soil itself. In an open loop, the groundwater flows directly through the heat exchanger. Less thermal resistance means better heat transfer.

In practical terms, this efficiency advantage is real but modest. Open loop systems typically achieve COP (Coefficient of Performance) values of 4.5-5.5, while closed loop systems are usually in the 3.5-5.0 range. Both are dramatically more efficient than any conventional heating system (which maxes out at a COP of about 0.95 for a high-efficiency furnace).

The bigger factor in real-world performance isn't the loop type — it's the system sizing, installation quality, and your specific soil/water conditions.

Permits, Regulations, and Water Rights

This is where open loop systems get complicated. Because you're extracting and discharging groundwater, open loop installations face regulatory scrutiny that closed loop systems usually don't.

Open Loop Regulatory Concerns

• Water rights: In western states (especially), groundwater extraction may require water rights or permits. Just because you can drill a well doesn't mean you can pump thousands of gallons daily for HVAC.
• Discharge permits: Returning water to the ground or a surface body often requires permits. The EPA and state environmental agencies regulate water discharge, even if the water's temperature has only changed by a few degrees.
• Well spacing requirements: Many jurisdictions require minimum distances between supply and return wells, and between your wells and neighboring properties.
• Water quality testing: You may need to test and prove your water quality before and after system operation.
• Some jurisdictions prohibit open loop entirely. This isn't rare. Certain counties and municipalities have decided the regulatory burden isn't worth it and simply don't allow open loop installations.

Closed Loop Regulatory Picture

By contrast, closed loop systems are much simpler to permit. The antifreeze solution stays sealed in the pipe — nothing enters or leaves the ground besides heat. Most jurisdictions require a standard mechanical permit and possibly a drilling permit for vertical installations, but the regulatory burden is significantly lighter.

Maintenance Differences

Closed Loop: Set It and (Mostly) Forget It

The beauty of closed loop systems is their simplicity. The buried pipe has no moving parts, no filters, no pumps exposed to groundwater chemistry. The antifreeze solution circulates in a sealed system that needs only occasional pressure checks and solution top-offs. The ground loop itself is warrantied for 25-50 years by most manufacturers and often lasts well beyond that.

Indoor components (circulating pump, heat exchanger, compressor) need standard HVAC maintenance — filter changes, annual inspection, occasional repairs as parts age.

Open Loop: More Moving Parts, More Attention

Open loop systems require ongoing attention to water quality:

• Heat exchanger scaling: Minerals in groundwater accumulate on the heat exchanger over time. Depending on your water chemistry, you may need descaling every 1-5 years.
• Well pump maintenance: The pump runs whenever the system operates. Pumps have a finite lifespan and will need replacement (typically every 10-15 years).
• Sand and sediment: If your well produces any sediment, it can clog or damage the heat exchanger. In-line filters need regular cleaning or replacement.
• Iron bacteria: In wells with iron content, bacteria can form biofilms that reduce flow and efficiency. This requires periodic treatment.
• Well capacity monitoring: Over years, well production can change. Annual flow testing helps catch declining capacity before it becomes a performance problem.

None of these are deal-breakers, but they add up. Budget $200-$500/year more for open loop maintenance compared to closed loop.

How to Decide

Here's a practical decision framework:

Go Closed Loop If:

• You have adequate yard space for horizontal trenching, OR you're willing to pay for vertical drilling
• You want the lowest-maintenance option
• You don't have an existing well with tested capacity
• Your local regulations make open loop difficult or impossible
• You don't want to deal with water quality management
• You're building new (trenching is easy before landscaping)
• You want the longest system lifespan with least intervention

Go Open Loop If:

• You already have a high-quality well with 6+ GPM flow
• Your water chemistry is good (low minerals, no iron, no sand)
• Your local regulations permit it without excessive burden
• You have a clear discharge path (return well, pond, approved drainage)
• You're comfortable with higher ongoing maintenance
• Upfront cost savings matter more than long-term simplicity

The Hybrid Option

Some systems combine approaches — using a closed loop ground field with a supplemental open loop well, or combining geothermal with a cooling tower for peak loads. These hybrid systems are more common in commercial applications but can make sense residentially if you have unusual site conditions.

"Several factors such as climate, soil conditions, available land, and local installation costs determine which is best for the site. All of these approaches can be used for residential and commercial building applications."

— U.S. Department of Energy

The bottom line: let your site conditions, local regulations, and budget guide the choice — not marketing material from companies that only install one type. A qualified installer should evaluate your property and recommend the system that makes the most sense for your specific situation, not just the one they prefer to sell.
